| Height: | 3.23 |
| Width: | 4.65 |
| Length: | 0.98 |
Global Part #2CTB802341R3300

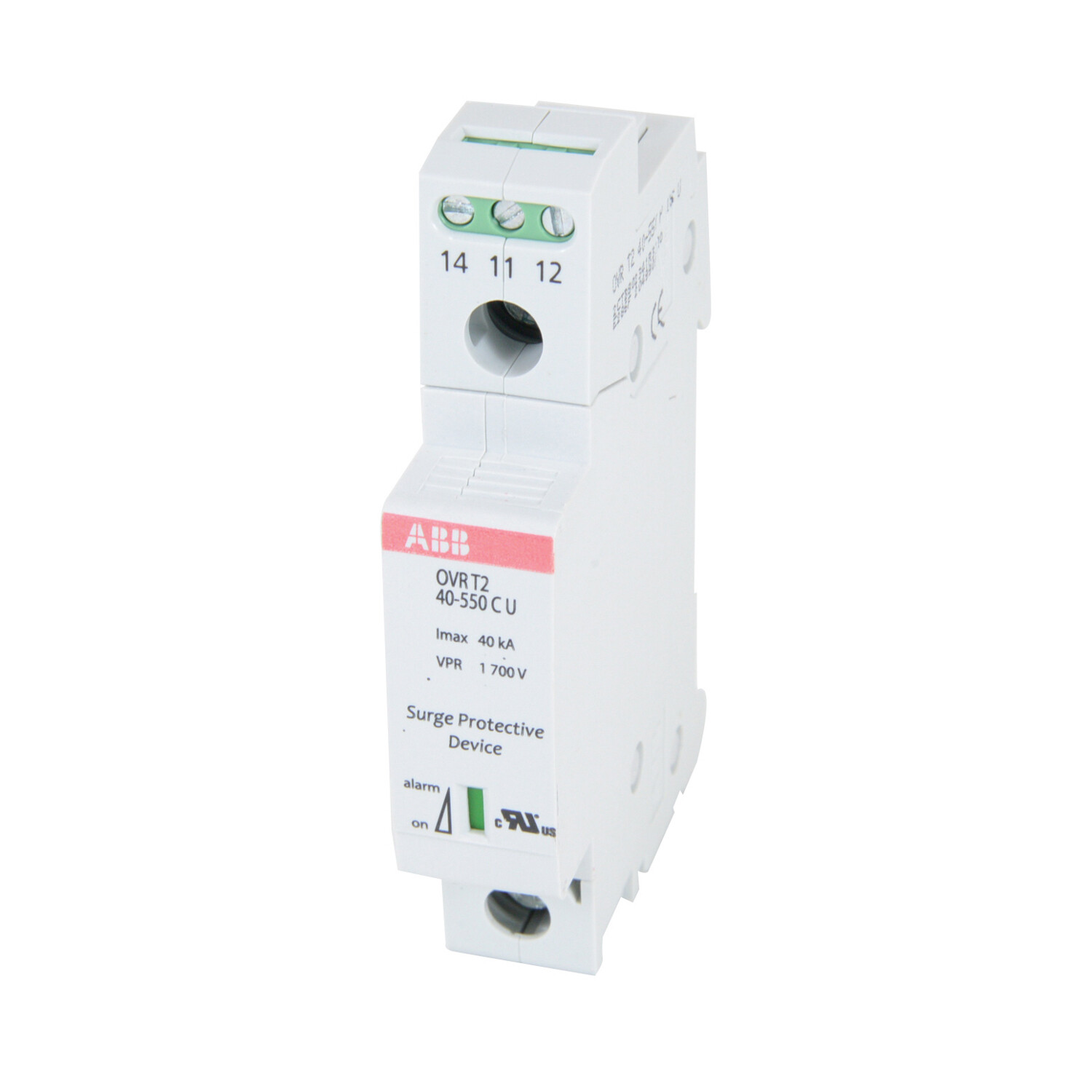

OVR T2 40-550 P TS U
| Arrester Class: | II |
|---|---|
| Discharge Current (Imax): | IINominal 10 kA Maximum 40 kA |
| Maximum Continuous Operating Voltage (Uc): | 550 V |
| Nominal AC Voltage of the System (Uo): | 480 V |
| Number of Poles: | 1 |
| Number of Protected Poles: | 1 |
| Product Main Type: | T2 |
| Product Name: | Surge Protective Devices |
| Short Circuit Withstand Icc: | 100 kA |
| Standards: | IEC 61 643-1 Ed2 / UL 1449 Ed3 |
| Suitable For: | To protect the systems against the transient overvoltage (lightning) |
| Version: | Plug-in |
