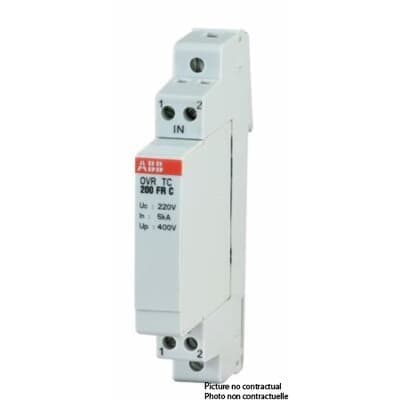

OVR TC/DATA SPD 10KA 200V FR
#475 in Surge Suppressers
| Weight: | 0.17 |
| Height: | 3.23 |
| Width: | 4.65 |
| Length: | 0.98 |
Global Part #2CTB811814R0000
OVR TC 200FR US
| Arrester Class: | III |
|---|---|
| Discharge Current (Imax): | IIINominal 5 kA Maximum 10 kA |
| Frequency (f): | 3 MHz |
| Maximum Continuous Operating Voltage (Uc): | 220 V |
| Number of Poles: | 2 |
| Number of Protected Poles: | 2 |
| Product Main Type: | DATA |
| Product Name: | Surge Protective Devices |
| Protection Type: | In series |
| Standards: | IEC 61643-1 / EN 61643-11 / UL 1449 |
| Suitable For: | To protect the systems against the transient overvoltage (lightning) |
| Version: | Fix |
| Voltage Protection Level ( Up): | (L-PE) 300 V |
| Voltage Rating DC: | 200 V |
