1.25m (49.2") Range, 1" NPT, 4-20mA, w/o
#24 in Ultrasonic Sensors
Application

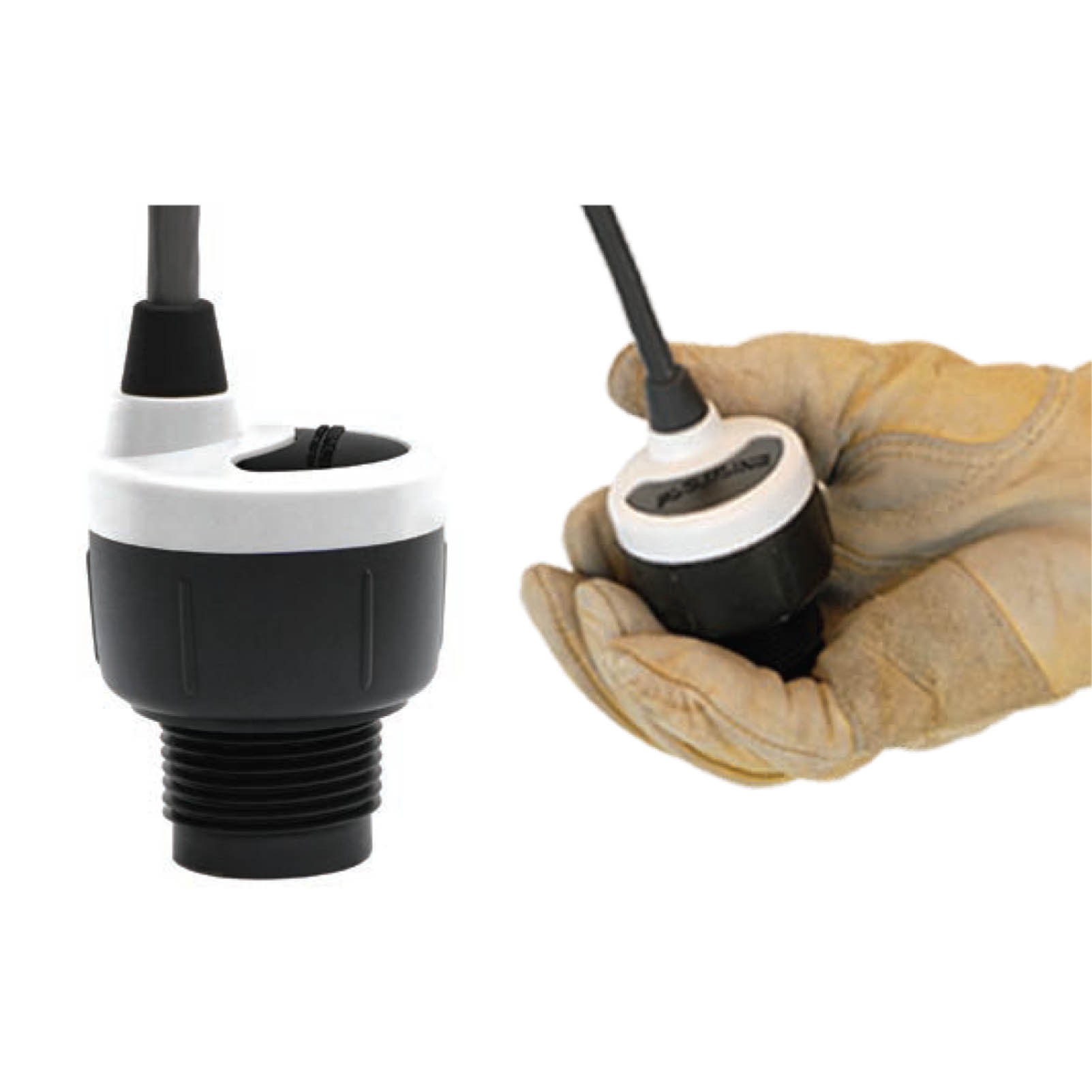

The general purpose ultrasonic level transmitter provides continuous level measurement up to 49.2″ (1.25m) with a 4-20 mA signal output, and is configured via our free WebCal software. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is broadly selected for small day tank, skid, IBC, sump and process tank level applications.
Features
- Continuous non-contact level measurement up to 49.2″ (1.25m)
- 4-20 mA output for longer signal distances up to 1000′ (300m)
- Configuration is fast and easy via WebCal software and USB adapter
- Narrow 2″ beam width and short 2″ dead band optimized for small tanks
- PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
- Automatic temperature compensation for accurate measurement
