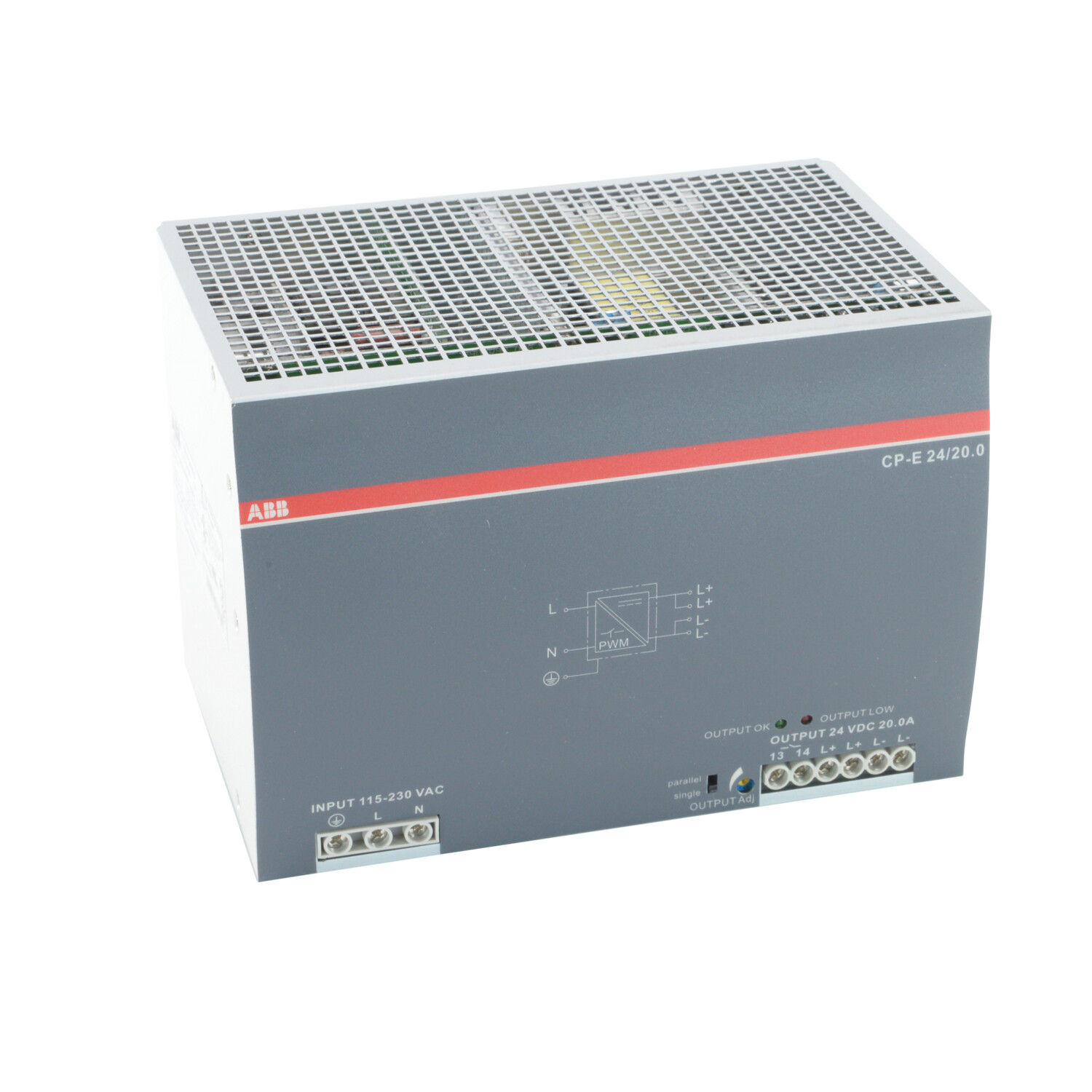

CP-E 24/20.0 POWER SUPPLY

Height: 1.00
Width: 1.00
Length: 1.00
  • Please note - standard factory leadtimes may have been effected globally by the complications of Covid-19. Please contact us to confirm.
  • 1SVR427036R0000

  • Description: CP-E 24/20.0 POWER SUPPLY
  • Extended Description: The CP-E 24/20.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 115-230 V AC. The rated output power is 480 W, rated output current is 20 A at a
  • Alternate Codes: 04016779669702,804325456258
  • UPC: 804325456258
  • UNSPSC : 39121004-4130
  • Manufacturer: ABB Control Inc
  • Brand: ABB
  • Packaging: EA
  • Your Price: $281.74
  • This product is not in stock - please contact us to confirm lead-time or place an order

Global Part #1SVR427036R0000

The CP-E 24/20.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 115-230 V AC. The rated output power is 480 W, rated output current is 20 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel. A redundancy unit is available as accessory.
