CR-M024DC3 PLUGGABLE RELAY

#3702 in  Control Relays
Height: 2.40
Width: 4.49
Length: 1.97
  • Please note - standard factory leadtimes may have been effected globally by the complications of Covid-19. Please contact us to confirm.
  • 1SVR405612R1000

  • Description: CR-M024DC3 PLUGGABLE RELAY
  • Extended Description: Plugin control relay with 24 VDC rated control supply voltage, SPDT (3 c/o) contacts, contacts, without LED indicator and 250 V, 10 A contact rating
  • Alternate Codes: 662019213927
  • UPC: 662019213927
  • UNSPSC : 39122331-5367
  • Manufacturer: ABB Control Inc
  • Brand: ABB
  • Packaging: EA
  • Minimum Order Quantity: 10
  • List Price: $17.16
  • Your Price: $7.60
  • Quantity:
  • This product is not in stock - please contact us to confirm lead-time or place an order

Application: For applications where low current control voltage is used to switch higher current or voltage loads

Standards: UL

Global Part #1SVR405612R1000

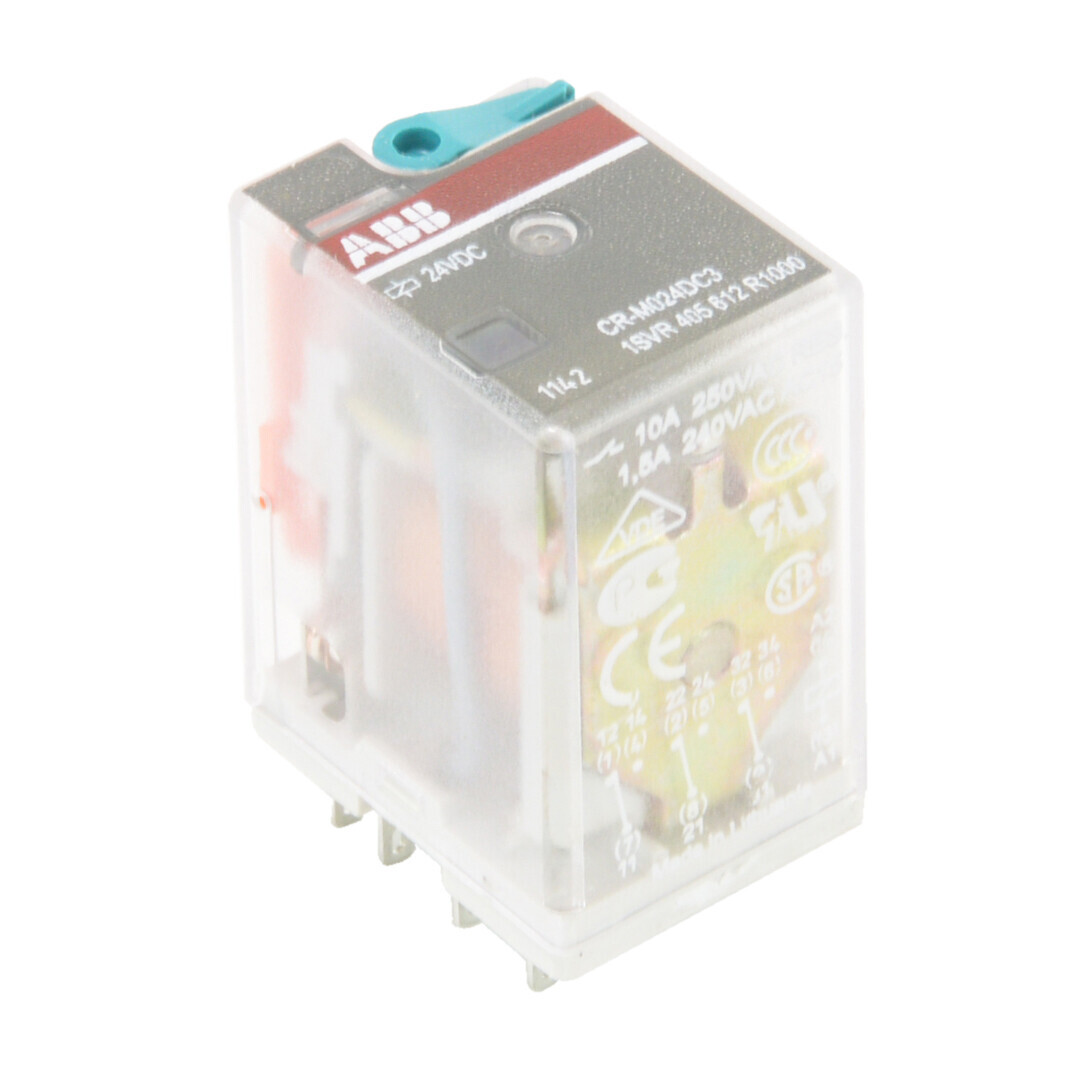

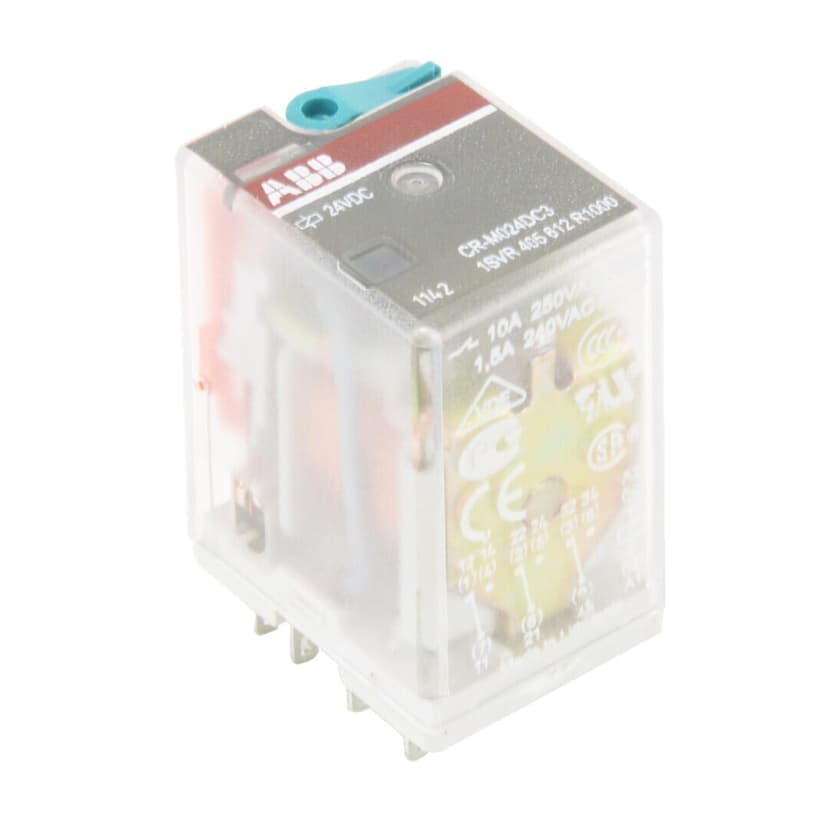

The CR-M024DC3 pluggable interface relay is from the CR-M (miniature) relay range. This relay operates with a 24 V DC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A. The relay has an integrated blue test button for manual actuation and locking of the output contacts. Standard sockets, logic sockets, pluggable function modules, holder and marker are available as accessories.
