+GF+ Electric Actuators

Electric Actuator Type EA11

Electric Actuator Type EA11

The EA11 is our basic version for the open-close operation of smaller torques. The electric actuator EA11 consists of a gear, a direct current motor, a base print as well as equipment for end stops in its standard version.



Options:

  • Heating element and fail-safe return for more safety
  • Additional mechanical limit switches for position feedback
  • Optional adapter per EN ISO 5211 for F04 and F05 interface

Advantages:

  • Cycle time: 5 s/ 90° at Mdn
  • Flexible configration of the actuator thanks to the modular concept easy handling
  • Additional safety due to fail-safe unit and battery pack (optional)
  • Long life time due to roust concept and the choice of best electronic
  • Suitable for universal use due to wide range power supply and standard interfaces





Electric Actuator Type EA21/31/42

Electric Actuator Type EA21/31/42

The electric actuators EA21, EA31 and EA42 are not only excellent equipped but can make their point with very high torques. Therefore these actuators can be used to actuate a wide range of valves.



Options:

  • Ready to operate signal
  • Heating element and fail-safe unit for more safety
  • Additional mechanical limit switches for position feedback
  • Actuator monitoring on an additional print: cycle time monitoring, cycle counter, motor current monitoring
  • Cycle time extention
  • Position signalization and 4-20mA position feedback
  • Positioner

Advantages:

  • Robust PP-GF housing with great chemical resistance
  • Flexible configuration of the actuator thanks to the modular concept
  • Easy handling
  • Numerous options for controlling and monitoring with intelligent, self-learning accessory
  • Additional safety due to fail-safe unit and battery pack (optional)
  • Long life time due to roust concept and the choice of best electronic
  • Suitable for universal use due to wide range power supply and standard interfaces

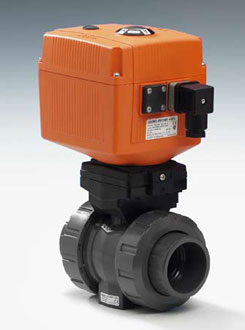

Electrically Actuated Ball Valve Type 107

Electrically Actuated Ball Valve Type 107

Type 107 is based on the Ball Valve Type 546 (d16DN10 to d63DN50) with the electric actuator EA11. The Type 107 is designed for automated standard applications with no special demands.



Fields of Application:

  • Chemical Process Industry
  • Life Science
  • Microelectronics
  • Measurement and Control
  • Water Treatment
  • Ship Building
  • Food & Beverage

Advantages:

  • Electric feedback for ball position integrated into multifunctional module or actuator
  • Heating element
  • Fail safe return unit with battery
  • Integrated emergency override

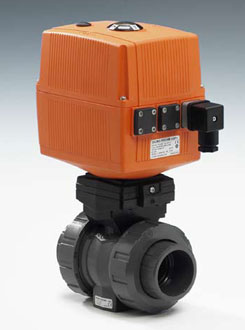

Electrically Actuated Ball Valve Type 130-135

Electrically Actuated Ball Valve Type 130-135

Ball valves Type 130, 131, 132, 133, 134 and 135 are based on the ball valve type 546 (d16DN10 to d110DN100) and the electric actuator EA21 (DN10-DN50) or EA31 (DN65-DN100). Type range 130-135 is designed as modular upgradable ball valve for Applications, which request special process demands.



Fields of Application:

  • Chemical Process Industry
  • Life Science
  • Microelectronics
  • Measurement and Control
  • Water Treatment
  • Ship Building
  • Food & Beverage

Advantages:

  • Electrical feedback 4-20mA with additional limit switches in different executions integrated into the actuator or in the multifunctional module
  • Run time control
  • Engine current control
  • Cycle control
  • Cycle time prolonging
  • Position control for 90° and 180° angle
  • Integrated manual emergency override

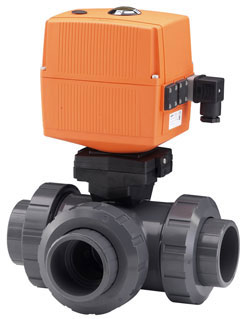

3-Way-Ball Valve with electric actuator Type 185-188

3-Way-Ball Valve with electric actuator Type 185-188

Ball valves Type 185 - 188 are based on ball valve Type 543 (d16DN10 to d63DN50) and electric actuator EA21. The Type range 185-188 is designed as modular upgradeable 3-Way ball valve for mixing and diverting applications which demand special process requirements.



Fields of Application:

  • Chemical Process Industry
  • Life Science
  • Microelectronics
  • Measurement and Control
  • Water Treatment
  • Ship Building
  • Food & Beverage

Advantages:

  • Electric Feedback 4-20mA with additional limit switches with different functions in the actuator
  • cycle time control
  • engine current control
  • cycle control
  • cycle time prolonging
  • position control for 90° and 180° bends
  • integrated emergency manual override

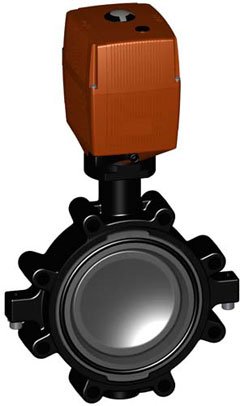

Electrically Actuated Butterfly Valve Type 142

Electrically Actuated Butterfly Valve Type 142

The Type 140 electrically actuated butterfly valve from GF Piping Systems is adaptable to a variety of conditions and applications. It is available in PVC, CPVC, Polypropylene, and PVDF materials. With the optional positioner, it goes from being a simple on/off valve to a precise flow control device integrated into systems controlled by PLCs and other computerized instrumentation.



Advantages:

  • Size range 2” to 8” ANSI lug style
  • 110-230VAC auto-detecting or 24V AD/DC
  • Manual override on actuator
  • Available in PVC, CPVC, polypropylene, and PVDF
  • Rated for 150 PSI (bidirectional)
  • Full pressure for dead end service
  • EPDM or FPM seals
  • UL certified
  • Double eccentric, off-center shaft for reduced wear and lower torque requirements
  • Special Q-ring design eliminates the need for flange gasketsSpecial Q-ring design eliminates the need for flange gaskets

Options:

  • Declutchable manual override
  • Limit switches
  • Fail safe back-up battery
  • Positioner (4-20mA, 1-10V)
  • ASI control

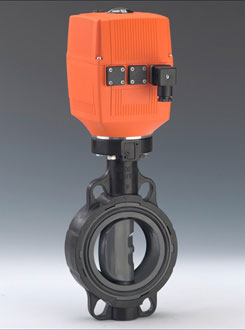

Electrically Actuated Butterfly Valve Type 140

Electrically Actuated Butterfly Valve Type 140

The Type 140 electrically actuated butterfly valve from GF Piping Systems is adaptable to a variety of conditions and applications. It is available in PVC-U, PVC-C, Polypropylene, and PVDF materials. With the optional positioner, it goes from being a simple on/off valve to a precise flow control device integrated into systems controlled by PLCs and other computerized instrumentation.



Advantages:

  • Size range 2” to 12” wafer style
  • 110-230VAC auto-detecting or 24V AD/DC
  • Manual override on actuator
  • Available in PVC-U, PVC-C, polypropylene, and PVDF
  • Rated for 150 PSI (bidirectional)
  • EPDM or FPM seals
  • UL certified
  • Double eccentric, off-center shaft for reduced wear and lower torque requirements
  • Special Q-ring design eliminates the need for flange gaskets

Options:

  • Declutchable manual override
  • Limit switches
  • Fail safe back-up battery
  • Positioner (4-20mA, 1-10V)
  • ASI control
