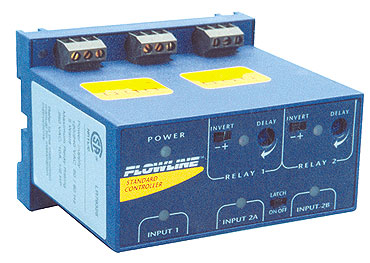

Flowline Flow Switch Remote Relay Controller

Flow Switch Remote
Application
The general purpose controller is offered in two versions with 1 or 2 relays and 1-2 sensor inputs. The LC80 provides single channel low flow switch automation with one sensor input. The LC82 provides dual channel low flow switch automation with two sensor inputs. Package the controller with our liquid or gas flow switch sensors.
Features
Fail-safe remote relay control of pumps and valves with 0-60 second time delay
Easy setup with LED indicators for sensor, power and relay status
35 mm DIN rail mount PP enclosure with removable terminal strips
Specifications
Supply voltage:
120/240 VAC, 50-60 Hz.
Sensor inputs:
LC80: (1) flow switch
LC82: (2) flow swiitches
Contact type:
LC80: (1) SPDT relay
LC82: (2) SPDT relays
Contact rating:
250 VAC @ 10A
Contact delay:
0-60 seconds
LED indication:
Sensor, power & relay status
Electronics temp:
F: -40° to 158°
C: -40° to 70°
Enclosure type:
35 mm DIN rail
Enclosure material:
PP (UL94VO)
Classification:
General purpose

Flowline Flow Switch Remote Application
