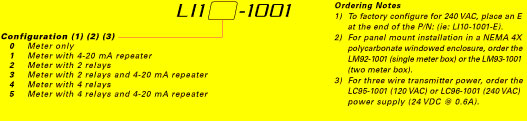

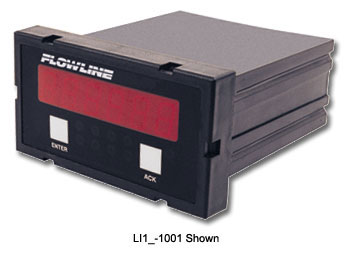

| The general purpose meter reads engineering units with one level transmitter input channel and is offered in six configurations with optional 2 or 4 relays, 4 or 8 set points and an isolated 4-20 mA repeater. Each relay can be configured on a single set point or two latched set points for automatic fill or empty control. |
|
| |
4.5 digit LED display indicates level in custom engineering units |
| |
11-point linearization function for volumetric tank measurement |
| |
Fail-safe design with security lock out jumper for process safety |
| |
1/8 DIN polycarbonate enclosure with NEMA 4X faceplate |
|
| Tech Tip |
| For three-wire transmitters, package the meter with our external power supply rated 24 VDC @ 0.6A. The rail mounted power supply can support up to three LU30 level transmitters. |
 |
|
|
Specifications
|
|
Display type:
|
LED, 4.5 digit
|
|
Display units:
|
Engineering
|
|
Display output:
|
0-199990
|
|
Input channel:
|
(1) 4-20 mA
|
|
Supply voltage:
|
120/240 VAC, 50-60 Hz.
|
|
Memory:
|
Non-volatile
|
|
Sensor supply:
|
24 VDC @ 25 mA
|
|
Repeater output:
|
4-20 mA, 24-36 VDC
|
|
Contact type:
|
LI12/13: (2) SPDT relays
LI14/15: (4) SPDT relays
|
|
Contact rating:
|
250 VAC @ 2A
|
|
Contact output:
|
Selectable NO/NC
|
|
Contact mode:
|
Alarm, latched
|
|
Operating temp:
|
F: -40° to 149°
C: -40° to 65°
|
|
Enclosure type:
|
1/8 DIN
|
|
Enclosure rating:
|
NEMA 4X (IP65) faceplate
|
|
Enclosure material:
|
Polycarbonate
|
|
Classification:
|
General purpose
|
|
| |
 |
