DataSwitch Remote Relay Controller


Flowline DataSwitch Remote Relay Controller
Application
The general purpose controller provides single tank level indication with 2 relays, 1-3 set points and an isolated 4-20 mA repeater. Relay 1 is configurable on a single set point. Relay 2 can be configured on a single set point or latched on two set points for automatic fill or empty control. A LED bar graph indicates the level as a percentage of measured span.
Features
  3.5 digit LED display indicates level in custom engineering units
  EasyCal push button calibration for span, display and relay set points
  Fail-safe design with security lock out calibration for process safety
  PP 35 mm DIN enclosure with removable terminal strips


Specifications
Display type:
LED, 3.5-digit
Display units:
Engineering
Display output:
0-999
Input channel:
(1) 4-20 mA
Supply voltage:
120/240 VAC, 50-60 Hz.
Memory:
Non-volatile
Sensor supply:
28 VDC @ 5 watts
Repeater output:
4-20 mA, 12-36 VDC
Contact type:
(2) SPDT relays (1 latching)
Contact rating:
250 VAC @ 10A
Contact output:
Selectable NO/NC
Operating temp:
F: -40° to 158°
C: -40° to 70°
Enclosure material:
PP
Enclosure type:
35 mm type
Classification:
General purpose

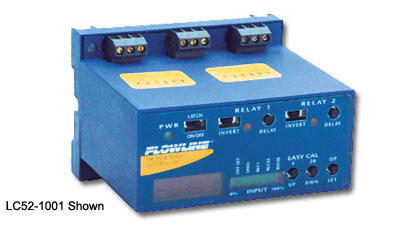

Remote Relay Controller LM94-1001
Part Number

Comments
