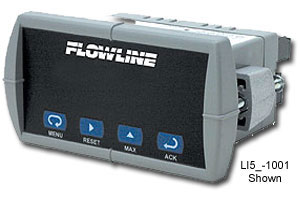

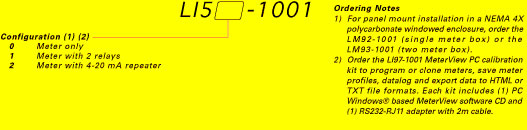

| The general purpose 1/8 DIN single-channel meter is offered in three configurations. Select the meter only for indication, the meter with 2 relays for indication and automation, and the meter with 4-20 mA repeater for signal isolation. With the optional MeterView® PC calibration kit, users can conveniently program or clone meters, save meter profiles, datalog and export data to HTML or TXT file formats. |
|
| |
Relay alternation and lead lag control optimize pump performance and maintenance |
| |
High intensity LED display is readable in direct sunlight for outdoor applications |
| |
Rugged 1/8 DIN polycarbonate enclosure with splash proof NEMA 4X faceplate |
| |
Compatible with analog, voltage and RTD thermocouple sensor inputs |
|
| Calibration |
| Your indicator may be configured in less than a minute using the MeterView PC calibration kit. User configuration files are retained for indicator cloning and record keeping. The software also provides a convenient interface for data-logging. |
|
|
|
Specifications
|
|
Display type :
|
LED, 4-digit
|
|
Display units:
|
Engineering
|
|
Display output:
|
0-9999
|
|
Input channel:
|
(1) 4-20mA / 0-10 VDC
|
|
Supply voltage:
|
90-250 VAC, 50-60 Hz.
|
|
PC-cal. interface:*
|
RS232 adaptor w/cable
|
|
PC-cal. software:*
|
MeterView (Windows®)
|
|
Memory:
|
Non-volatile
|
|
Sensor supply:
|
24 VDC @ 200 mA
|
|
Repeater output:
|
LI52: Isolated
|
|
Contact type:
|
LI51: (2) SPDT relays
|
|
Contact rating:
|
LI51: 750 VA
|
|
Contact output:
|
LI51: Selectable NO/NC
|
|
Contact mode:
|
LI51: Alarm, latched, pump-altern., lead-lage
|
|
Operating temp.:
|
F: -4° to 140°
C:-20° to 60°
|
|
Enclosure type:
|
1/8 DIN
|
|
Enclosure rating:
|
NEMA 4X (IP65) faceplate
|
|
Enclosure mat'l.:
|
Polycarbonate FR
|
|
Classification:
|
General purpose
|
|
* Requires the LI97-1001 MeterView calibration kit
|
|
 |
|
