| The general purpose two-wire alphasonic transmitter provides light duty level measurement up to 10' or 3m, and is well suited for clean water or non-coating and scaling diluted corrosive liquids. The transmitter is typically selected for atmospheric day tank and process vessel applications. Media examples include potable water and malic acid. |
|
 |
| |
Low-cost measurement solution for light duty level applications |
| |

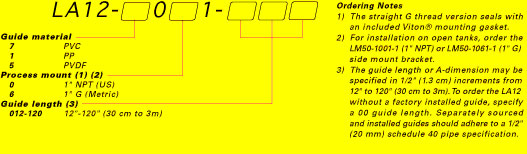

PVC, PP or PVDF wave guides may be easily sized in the field |
| |
Wave guide dampens turbulence for accurate measurement in agitation |
| |

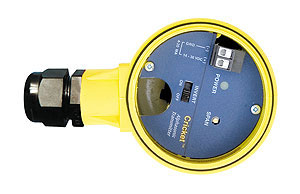

Simple potentiometer calibration with power LED and span invert switch |
|
| Tech Tip |
| For easy installation in open tanks, order the adjustable LM50 side mount bracket. The PP bracket bolts directly to the side wall. |
 |
|
|
|
Specifications
|
|
Range:
|
1' to 10' (30cm to 3m)
|
|
Accuracy:
|
± 1% of span in air
|
|
Supply voltage:
|
14-36 VDC
|
|
Signal output:
|
4-20 mA, two-wire
|
|
Calibration:
|
Potentiometer
|
|
Process temp:
|
F: -4° to 140°
C: -20° to 60°
|
|
Pressure:
|
30 psi (2 bar)
|
|
Enclosure rating:
|
NEMA 4X (IP65)
|
|
Probe material
|
PVDF
|
|
Conduit:
|
1/2" NPT
|
|
Process mount:
|
1" NPT (1" G)
|
|
Classification:
|
General purpose
|
|
| |
 |
