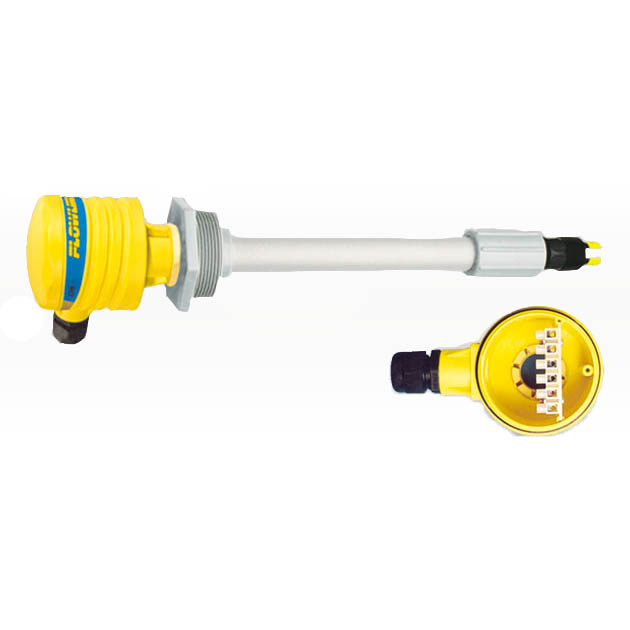

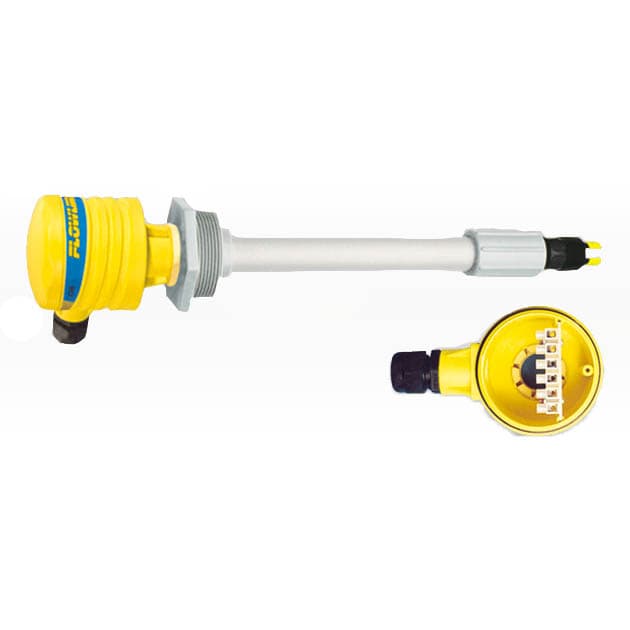

Vibration, SPST Relay, Ryton, 2" NPT
#249 in Level Sensors or Transmitters
MUST SPECIFY 'A' DIMENSION TO QUOTE/ORDER
-
Application
-
The general purpose level switch package provides reliable, multi-point liquid level detection up to 10’ (3m) with 1-4 adjustable level switch points and a compact junction box for integral wiring termination. Available in three level sensor technologies, select the sensor type based upon your application media. This PP liquid level switch package is widely applied in process, sump and day tank level applications for automatic filling or emptying with high level alarm and/or low level alarm.
-
-
Specifications
- Length: 8” to 10’ (20cm to 3m)
- Accuracy: ± 1mm in water
- Repeatability: ± 0.5mm in water
- Orientation: ± 20° vertical
- Switch points: 1-4 (field adjustable)
- Supply voltage
- AVX6: N/A
- AUX8: 12-36 VDC
- AZX8: 12-30 VDC
- Consumption
- AVX6: N/A
- AUX8/AZX8: 100 mA max
- Contact type
- AVX6: SPDT reed(s)
- AUX8/AZX8: SPST relays
- Contact rating
- AVX6: 15 VA, 0.25A max
- AUX8/AZX8: 60 VA, 1A max
- Contact output: Selectable NO / NC
- Process temp.: F: -40° to 176° (C: -40° to 80°)
- Ambient temp.: F: -40° to 140° (C: -40° to 60°)
- Pressure: Atmospheric
- Enclosure rating: NEMA 4X (IP65)
- Enclosure mat.: PP, UL94VO
- Terminal strip: 12-pole, socket
- Conduit entrance:1/2” NPT
- Wetted material: PP (glass fill)
- Process mount: 2” NPT (2” G)
- Classification:General purpose
- Compliance: CE
-
Features
- Rugged polypropylene multi-point level switch package for corrosive liquids
- 60VA relay or 15VA dry contact selectable NO or NC via wiring
- Offered in 3 sensing technologies for broad application coverage: ultrasonic, vibration & buoyancy
- Adjustable level switch cars enable sensor adjustment in the field
- Polypropylene enclosure rated NEMA 4X with swivel base and terminal strip
