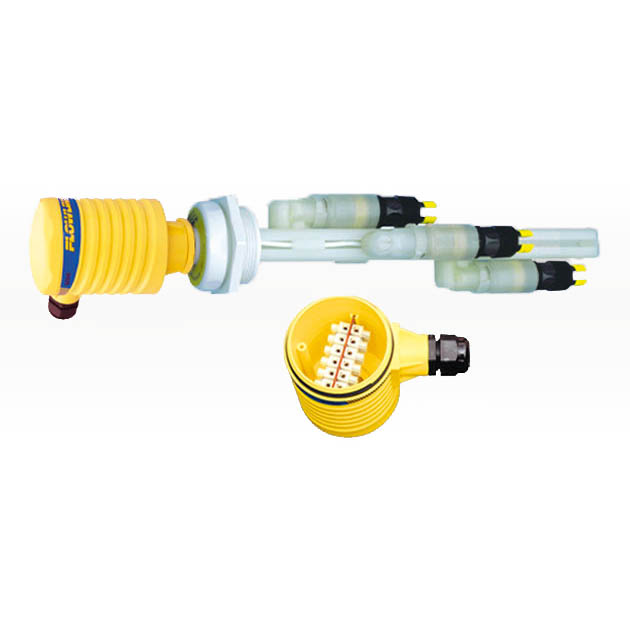

Buoyancy, 4 x SPDT Reed, PP, 2" G

#211 in  Level Sensors or Transmitters
MUST SPECIFY 'A/B/C' DIMENSIONS TO QUOTE/ORDER
  • Please note - standard factory leadtimes may have been effected globally by the complications of Covid-19. Please contact us to confirm.

  • AV46-4347-A-B-C-D-E

  • Description: Buoyancy, 4 x SPDT Reed, PP, 2" G
  • Extended Description: Buoyancy, 4 x SPDT Reed, PP, 2" G
  • Alternate Codes: AV464347ABCDE
  • UNSPSC : 41111938-6170
  • Standard Lead Time:
  • Manufacturer: Flowline
  • Brand: Smart-Trak
  • Packaging: EA
  • Your Price: $860.00
  • This product is not in stock - please contact us to confirm lead-time or place an order

  • Application

    • The general purpose level controller displays engineering units with four 4-20 mA continuous level sensor inputs and 6 programmable relays. Select from one of three run configurations:

    1. Multi-tank with 4 level sensor inputs and 4 relays

    2. Pump control with 1 level sensor input and 6 relays for lift stations in simplex (one pump) or duplex (two pumps) level control modes

    3. Differential level with 2 level sensor inputs and 4 relays for municipal screen or rake control

    • Relays can be configured on a single set point (high level alarm or low level alarm) or latched on two set points for automatic fill or empty pump or valve control with selectable time delay. The graphic LCD display indicates span and relay status for each input channel. An optional MicroSD card enables data-logging storage and retrieval.

  • Specifications

    • Display type: LCD, graphic
    • Display pixels: 128 x 64
    • Display units: Engineering
    • Display output: 0 to 999999
    • LCD indication: Relay status
    • Configuration: Push button
    • Backlight: Yes
    • Memory: Non-volatile
    • Opt. memory: MicroSD card
    • Linearization: Tank shapes
    • Sensor inputs
      • -1001: (4) 4-20 mA
      • -2001: (2) 4-20 mA
    • Supply voltage: 10-30 VDC
    • Contact type
      • -1001: 6 SPST relays
      • -2001: No relays
    • Consumption: 130 mA @ 24 VDC
    • Contact rating: 3A @ 30 VDC or 250 VAC resistance load (-1001 only)
    • Repeater output:(2) 4-20 mA, 24 VDC (-2001 only)
    • Ambient temp.: F: 32° to 122° (C: 0° to 50°)
    • Enclosure type: 1/4 DIN, panel mount with 35mm DIN rail
    • Enclosure rating: NEMA 4X (IP65) faceplate
    • Enclosure mat.: Polycarbonate
    • Classification: General purpose
    • Compliance: CE
    • Approvals: cULus

  • Features

    • Multi-tank controller with three run mode configurations
    • Easy configuration via the push button display module
    • Graphic LCD display indicates channel span and relay status
    • DIN enclosure with NEMA 4X faceplate and shallow case
    • Easy data logging and retrieval via optional MicroSD card
    • Simulation mode for configuration testing and troubleshooting
