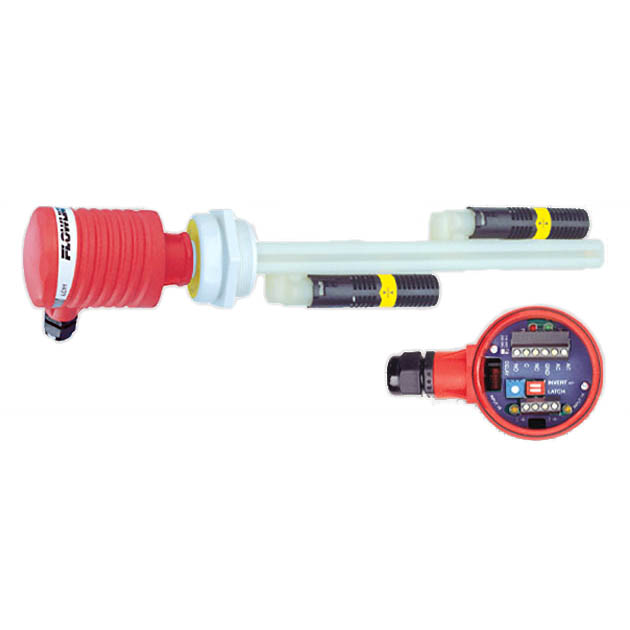

Buoyancy, PP, 2" NPT
#224 in Level Sensors or Transmitters
MUST SPECIFY 'A/B/C' DIMENSIONS TO QUOTE/ORDER
-
Application
-
The general purpose float level transmitter provides continuous level measurement up to 6.5’ (2m) with a 4-20 mA signal output, and is factory configured to your selected dimension. This stainless steel liquid level sensor is well suited for high temperature or pressure tank level applications with relatively clean liquids such as water, diluted chemicals and light weight oils. Application examples include boilers and process vessels.
-
-
Specifications
- Range: 12” to 6.5’ (30cm to 2m)
- Accuracy: 0.25% span in water
- Configuration: None, fixed span
- Orientation: ± 20° from vertical
- Specific gravity: 0.55 minimum
- Supply voltage: 10 to 30 VDC
- Loop resist.: 600 Ohms @ 24 VDC
- Signal output: 4-20 mA, two-wire
- Process temp.: F: -40° to 185° (C: -40° to 85°)
- Ambient temp.: F: -40° to 140° (C: -40° to 60°)
- Pressure: 200 psi (13.8 bar)
- Enclosure rating: NEMA 4X (IP65)
- Enclosure mat.: PP, UL94VO
- Conduit entrance: Single, 1/2” NPT
- Process mount: 2” NPT
- Guide-float mat: 316 SS
- Classification: General purpose
- Compliance: CE
-
Features
- High pressure or temperature level measurement up to 6.5’ (2m)
- Rugged 316 stainless steel float guide and process mounting plug
- Assembled to your guide length and measurement span dimensions
- Polypropylene junction box rated NEMA 4X with conduit port and terminal strip
