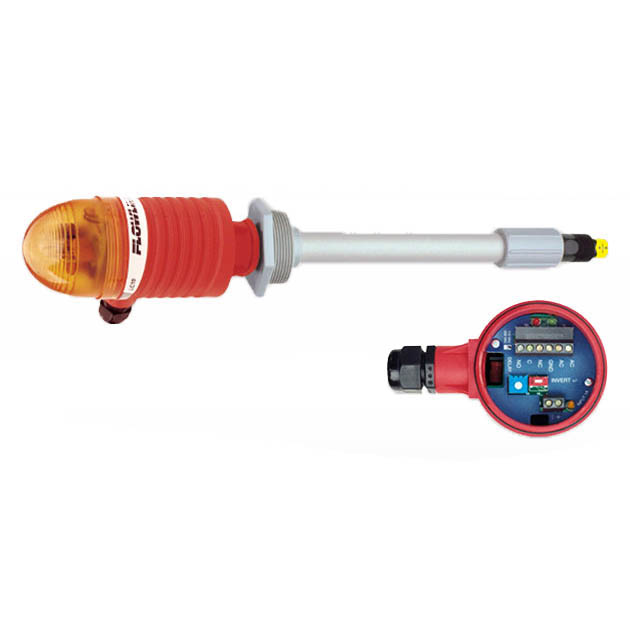

Ultrasonic, PP, w/Strobe, 2" NPT

MUST SPECIFY 'A' DIMENSION TO QUOTE/ORDER
  • Please note - standard factory leadtimes may have been effected globally by the complications of Covid-19. Please contact us to confirm.
  • AU13-4213-A

  • Description: Ultrasonic, PP, w/Strobe, 2" NPT
  • Extended Description: Ultrasonic, PP, w/Strobe, 2" NPT
  • Alternate Codes: AU134213A
  • UNSPSC : 41112407-6235
  • Standard Lead Time:
  • Manufacturer: Flowline
  • Brand: Switch-Pro
  • Packaging: EA
  • Your Price: $744.29
  • This product is not in stock - please contact us to confirm lead-time or place an order

  • Application

    • Offered in a type 6P enclosure with cable interface, the general purpose ultrasonic level transmitter provides continuous level measurement up to 32.8’ (10m) with a 4-20 mA signal output, and is configured via our free Webcal software. This non-contact liquid level sensor is ideally suited for corrosive, ultrapure, sticky or dirty liquids, and is broadly selected for bulk storage, day tank, lift station and process tank level applications.


  • Specifications

    • Range
      • LU27: 4” to 9.8’ (10cm to 3m)
      • LU23: 8” to 18.0’ (20cm to 5.5m)
      • LU28: 8” to 26.2’ (20cm to 8m)
      • LU29: 8” to 32.8’ (20cm to 10m)
    • Accuracy: ± 0.2% of range
    • Resolution
      • LU27: 0.019” (0.5mm)
      • LU23: 0.039” (1mm)
      • LU28/29: 0.079” (2mm)
    • Dead band
      • LU27: 4” (10cm)
      • LU23/28/29: 8” (20cm)
    • Beam width
      • LU27: 2” (5cm)
      • LU23/28/29: 3” (7.6cm)
    • Configuration: WebCal® PC, Windows® USB 2.0
    • Memory: Non-volatile
    • Supply voltage: 24 VDC (loop)
    • Consumption: 0.5W
    • Loop resistance: 500 ohms @ 24 VDC
    • Signal output: 4-20 mA, two-wire
    • Signal invert: 4-20 mA or 20-4 mA
    • Signal fail-safe: 4 mA, 20 mA, 21 mA, 22 mA or hold last
    • Process temp.: F: -4º to 140º (C: -20º to 60º)
    • Temp. comp.: Automatic
    • Ambient temp.: F: -31º to 140º (C: -35º to 60º)
    • Pressure: MWP = 30 PSI (2 bar)
    • Enclosure rating: Type 6P, encapsulated, corrosion resistant & submersible
    • Encl. material: Polycarbonate
    • Trans. material: PVDF
    • Cable jacket mat:Polyurethane
    • Cable type: 4-conductor, shielded
    • Cable length: 10’ (3m)
    • Process mount
      • LU27: 1” NPT (1” G)
      • LU23/28/29: 2” NPT (2” G)
    • Mount gasket: Viton®
    • Classification: General purpose
    • Compliance: CE, RoHS
    • Approvals: cFMus

  • Features

    • Offered in 4 measurement ranges from 9.8’ (3m) to 32.8’ (10m)
    • DSP auto adaptive filters enable plug and play operation optimizing signal output filtering and obstacle recognition
    • Submersible type 6P enclosure is ideal for sump and below grade installations
    • Configuration is fast and easy via WebCal software and USB adapter
    • Narrow 2” or 3” beam width for applications with limited measurement space
    • Short 4” or 8” dead band maximizes the measurable filling capacity of the tank
    • PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
    • Automatic temperature compensation for accurate measurement
