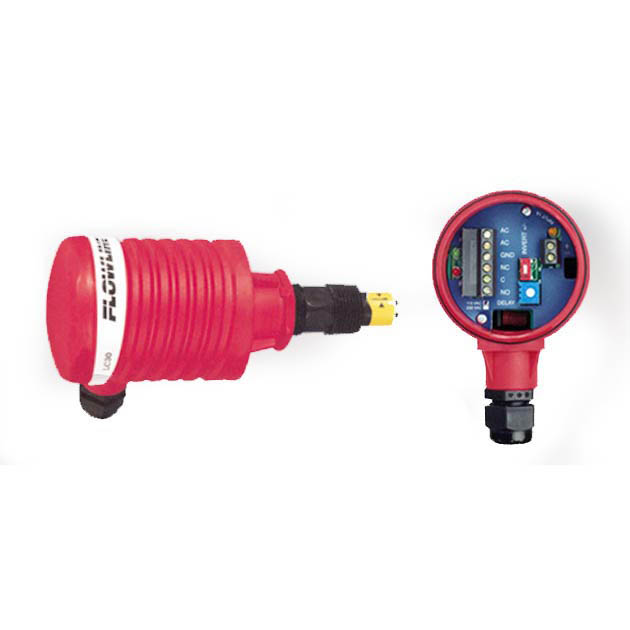

Liquid, Long, PVDF, w/Strobe, 3/4" G

#483 in  Flow Sensors
  • Please note - standard factory leadtimes may have been effected globally by the complications of Covid-19. Please contact us to confirm.
  • AT14-3614

  • Description: Liquid, Long, PVDF, w/Strobe, 3/4" G
  • Extended Description: Liquid, Long, PVDF, w/Strobe, 3/4" G
  • Alternate Codes: AT143614,B01BUH12AI
  • UNSPSC : 41111931-6163
  • Standard Lead Time:
  • Manufacturer: Flowline
  • Brand: Thermo-Flo
  • Packaging: EA
  • Your Price: $828.57
  • This product is not in stock - please contact us to confirm lead-time or place an order

Application

Offered in liquid and gas sensor types, the general purpose flow switch package provides reliable no or low-flow detection of relatively clean non-coating media with a 16A compact flow controller for pump or process protection. Liquid examples includes water and sulfuric acid. The optional flash alarm brings attention to low-flow alarm conditions. Available in Polypropylene-Ryton® and PVDF, the short flow sensor is used in pipe or ducting from 1/2″ to 1 1/2″, and the long flow sensor is used in 2″ and up. The flow switch set point may be adjusted from 0.04 to 3 fps in liquids, or 1 to 90 fps in gases for low-flow control. The flow sensor is best applied in applications with relatively constant temperature.

Features

  • Rugged Polypropylene-Ryton® or PVDF sensor for corrosive liquids and gases
  • Fail-safe relay control of pumps or valves with 0-60 second delay
  • Polypropylene enclosure rated NEMA 4X with swivel base for conduit alignment
  • Invert switch changes relay state from NO to NC without rewiring
  • Optional strobe brings immediate attention to flow alarm conditions
  • Solid state sensor is not damaged by over-ranging flow velocities
