Thermo-Floð°ð°ð°ð°ð°

#125 in  Flow Sensors
  • Please note - standard factory leadtimes may have been effected globally by the complications of Covid-19. Please contact us to confirm.

  • AT12-1614-E

  • Description: Thermo-Floð°ð°ð°ð°ð°

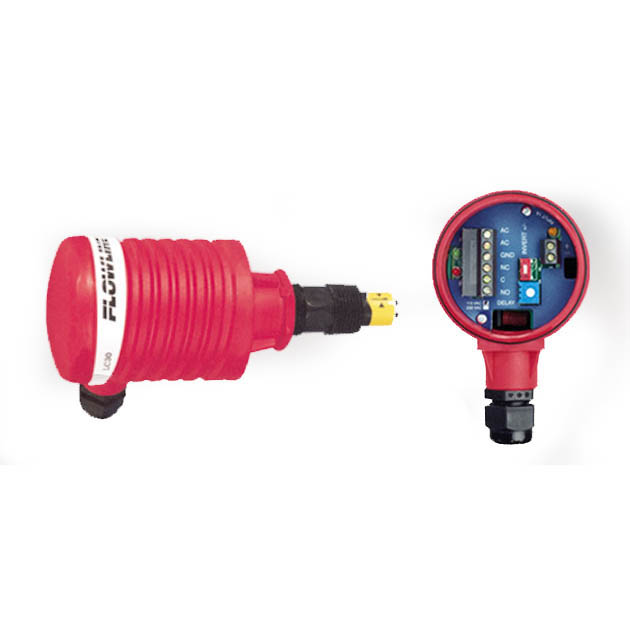

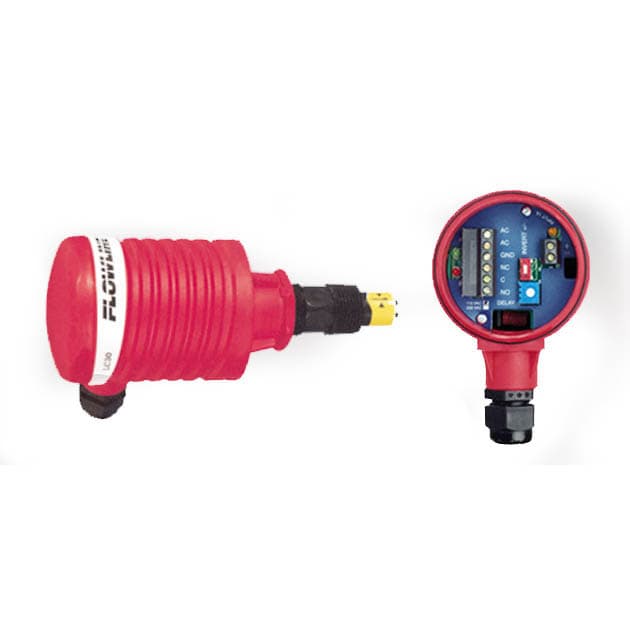

  • Extended Description: Thermo-Flo™ with Compact Flow Controller
  • Alternate Codes: AT121614E,B01BUH8V0W
  • UNSPSC : 41111931-6163
  • Standard Lead Time:
  • Manufacturer: Flowline
  • Brand: Thermo-Flo
  • Packaging: EA
  • List Price: $940.00
  • Your Price: $671.43
  • This product is not in stock - please contact us to confirm lead-time or place an order

  • Application

    • FM approved for hazardous environments, the explosion proof ultrasonic level transmitter provides continuous level measurement up to 32.8’ (10m) with a 4-20 mA signal output, and is configured via the integral push button display module. This non-contact liquid level sensor is ideally suited for corrosive, ultrapure, sticky or dirty liquids, and is widely selected for bulk storage, day tank, lift station and process tank level applications located in a classified area.

  • Specifications

    • Range: XP88: 8” to 26.2’ (20cm to 8m), XP89: 8” to 32.8’ (20cm to 10m)
    • Accuracy: ± 0.2% of range
    • Resolution: 0.079” (2mm)
    • Dead band: 8” (20cm)
    • Beam width: 3” (7.6cm)
    • Configuration: Push button
    • Memory: Non-volatile
    • Display type: LCD, 6-digit
    • Display units: Inch, cm, percent, feet or meter
    • Supply voltage: 18-28 VDC (loop)
    • Loop resistance: 250 Ohms max @ 24 VDC
    • Signal output: 4-20 mA, two-wire
    • Signal invert: 4-20 mA or 20-4 mA
    • Signal fail-safe: 4 mA, 20mA, 21 mA, 22 mA or hold last
    • Process temp.: F: -4° to 140° (C: -20 to 60°)
    • Temp. comp.: Automatic
    • Process temp.: F: -4° to 140° (C: -20 to 60°)
    • Pressure: MWP = 30 psi (2 bar)
    • Enclosure rating: Type 4
    • Encl. material: Aluminum
    • Window material: Glass
    • Conduit entrance: Dual, 1/2” NPT
    • Trans. material: PVDF
    • Process mount: 2” NPT
    • Mount gasket: Viton®
    • Classification: Explosion proof
    • Compliance: CE, RoHS
    • Approvals
      • FM: Class I, Div I Groups A, B, C, D; Class II, Div I, Groups E, F, G; Class III, Div I

  • Features

    • Explosion proof level transmitter for use in hazardous areas
    • Offered in 2 measurement ranges from 26.2’ (8m) to 32.8’ (10m)
    • Configuration is simple via integral push button display module
    • Type 4 aluminum XP windowed enclosure with dual conduit ports
    • LCD display indicates level in inches, centimeters or percent of span
    • Narrow 3” beam width for applications with limited measurement space
    • Rugged PVDF transducer and process mounting plug for corrosive liquids
    • Automatic temperature compensation for accurate measurement
