Thermo-Floð°ð°ð°ð°ð°

#293 in  Flow Sensors
  • Please note - standard factory leadtimes may have been effected globally by the complications of Covid-19. Please contact us to confirm.

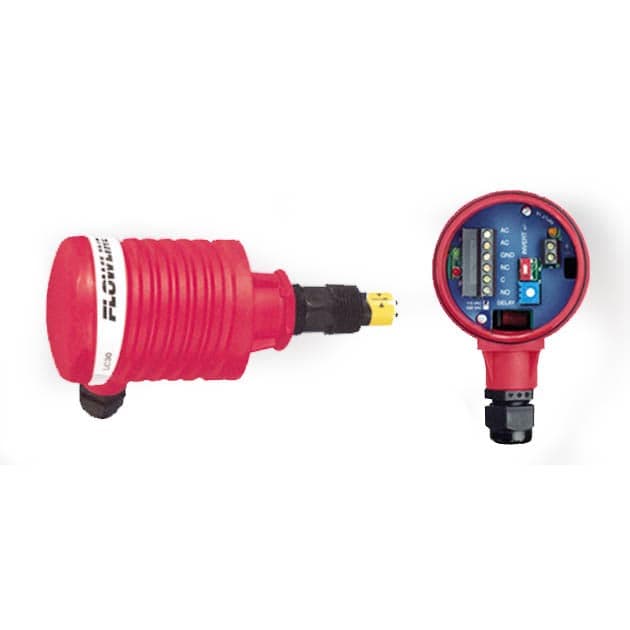

  • AG12-1610-E

  • Description: Thermo-Floð°ð°ð°ð°ð°
  • Extended Description: Thermo-Flo™ with Compact Flow Controller
  • Alternate Codes: AG121610E,B01BUH7QJY
  • UNSPSC : 41111931-6163
  • Standard Lead Time:
  • Manufacturer: Flowline
  • Brand: Thermo-Flo
  • Packaging: EA
  • List Price: $910.00
  • Your Price: $650.00
  • This product is not in stock - please contact us to confirm lead-time or place an order

  • Application

    • The general purpose ultrasonic level transmitter provides continuous level measurement up to 9.8’ (3m) with a 4-20 mA signal output, and is configured via our free Webcal software. The level sensor has 4 programmable relays with selectable hysteresis and fail-safe logic. The embedded level controller can lower cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is widely selected for day tank, skid, IBC, sump and process tank level applications.

  • Specifications

    • Range: 9.8' (3m)
    • Accuracy: ± 0.2% of range
    • Resolution: 0.039” (1mm)
    • Dead band: 4” (10cm)
    • Beam width: 2” (5cm)
    • Configuration: WebCal® PC, Windows® USB 2.0
    • Memory: Non-volatile
    • Supply voltage: 24 VDC (loop)
    • Consumption: 0.5W
    • Loop resist.: 400Ω max
    • Signal output: 4-20 mA, two-wire
    • Signal invert: 4-20 mA or 20-4 mA
    • Signal fail-safe: 4 mA, 20 mA, 21 mA, 22 mA or hold last
    • Contact type: (4) SPST relays
    • Contact rating: 60 VA, 1A maximum
    • Contact fail-safe
      • Power loss: Hold last
      • Echo loss: Open, closeor hold last
    • Hysteresis: Selectable
    • Process temp.: F: 20° to 140° (C: -7° to 60°)
    • Temp. comp.: Automatic
    • Ambient temp.: F: -31° to 140° (C: -35° to 60°)
    • Pressure: MWP = 30 PSI (2 bar)
    • Enclosure rating: Type 6P, encapsulated,corrosion resistant & submersible
    • Encl. material: Polycarbonate
    • Trans. material: PVDF
    • Cable jacket mat: Polyurethane
    • Cable type: 9-conductor, shielded
    • Cable length: 48” (1.2m)
    • Process mount: 1” NPT (1” G)
    • Mount gasket: Viton®
    • Classification: General purpose
    • Compliance: CE, RoHS
    • Approvals: cFMus

  • Features

    • Switch and control functions with continuous level measurement output up to 9.8’ (3m)
    • Configuration is fast and easy via WebCal software and USB adapter
    • Narrow 2” beam width and short 4” dead band optimized for small tanks
    • Four (4) programmable relays rated @ 1A / 60VA for switch, pump or valve control and fail-safety
      • 1 pump or valve with 3 alarms
      • 2 pumps (lead-lag) with 2 alarms
      • 2 pumps (duplexing) with 2 alarms
      • 4 independent switch point alarms
    • PVDF transducer and 6P polycarbon- ate enclosure for corrosive liquids
    • Automatic temperature compensation for accurate measurement
